Twenty-six FDA-cleared device configurations across three product lines — bone marrow aspiration (510(k) K131157), SNARECOIL™ bone marrow biopsy (510(k) K983187), and minimally invasive general surgery. From routine diagnostics through large-bore orthobiologic harvest, all single-use and sterile-packaged.
Thirteen cleared configurations spanning 8–15 gauge in lengths from 2.8″ to 25 cm. From routine posterior iliac diagnostics through large-bore orthobiologic harvest, with fenestrated and non-fenestrated cannulas and multiple stylet geometries. All cleared under FDA 510(k) K131157.
The workhorse configurations for posterior iliac access, hematology diagnostics, and oncology staging. Fenestrated cannulas support multi-site marrow draw without repositioning; non-fenestrated and extra-blunt-stylet variants cover protocols requiring single-site or exchange-compatible aspiration.

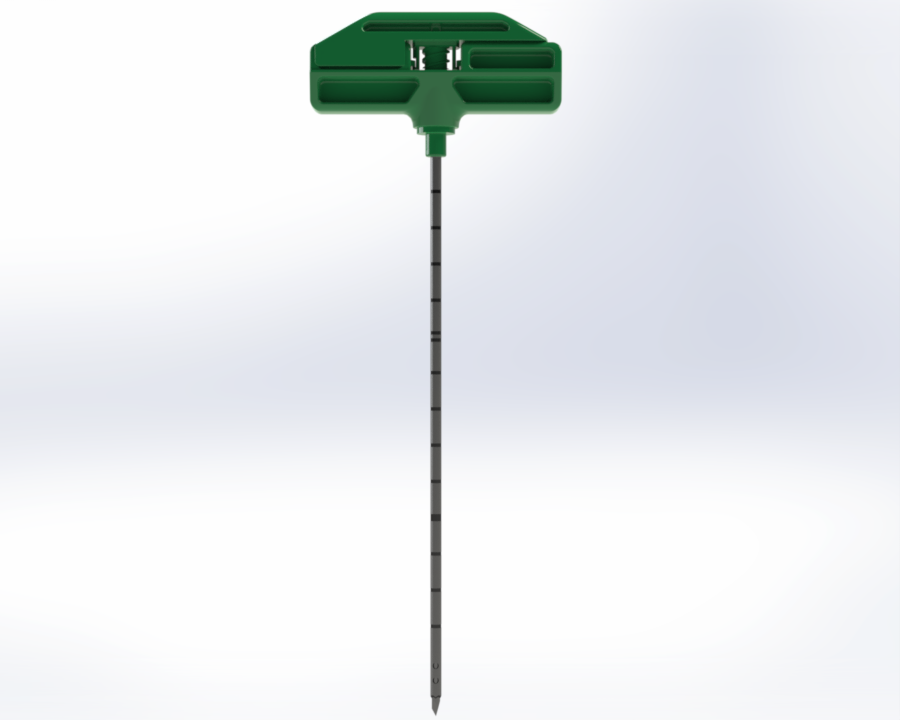

Single-use bone marrow aspiration needle with side-port (fenestrated) cannula. 11 G × 15 cm, sharp diamond stylet, luer-lock hub. Sterilized by ethylene oxide.
View product details →

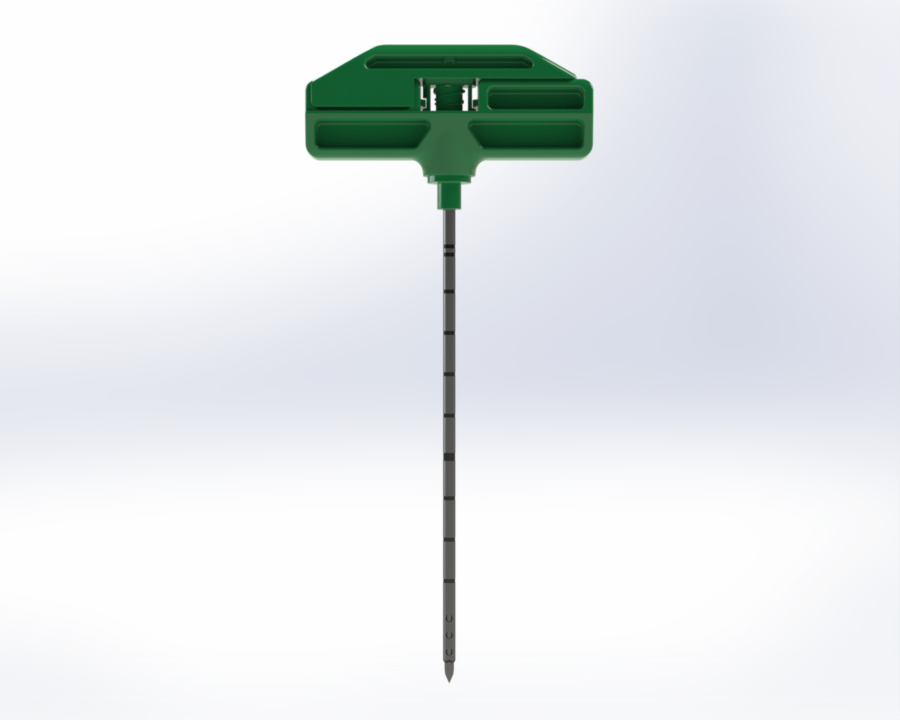

Single-use 11 gauge × 11 cm bone marrow aspiration needle with side-port (fenestrated) cannula and diamond-tip stylet. FDA-cleared (K131157), EO sterilized, Rx only.
View product details →

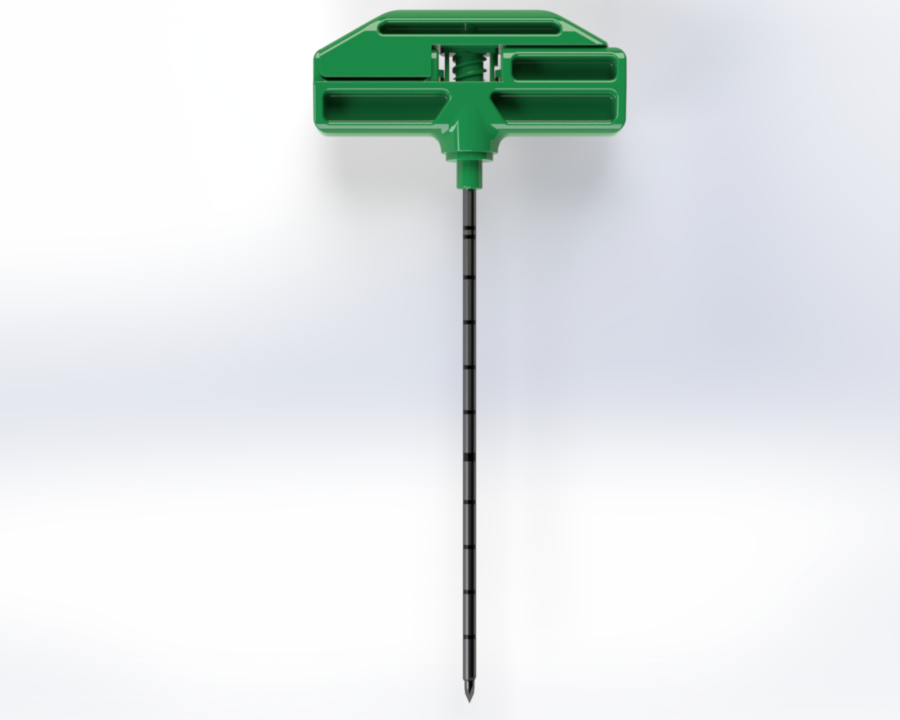

Single-use 11 gauge × 11 cm bone marrow aspiration needle with non-fenestrated cannula and diamond-tip stylet. FDA-cleared (K131157), EO sterilized, Rx only.
View product details →

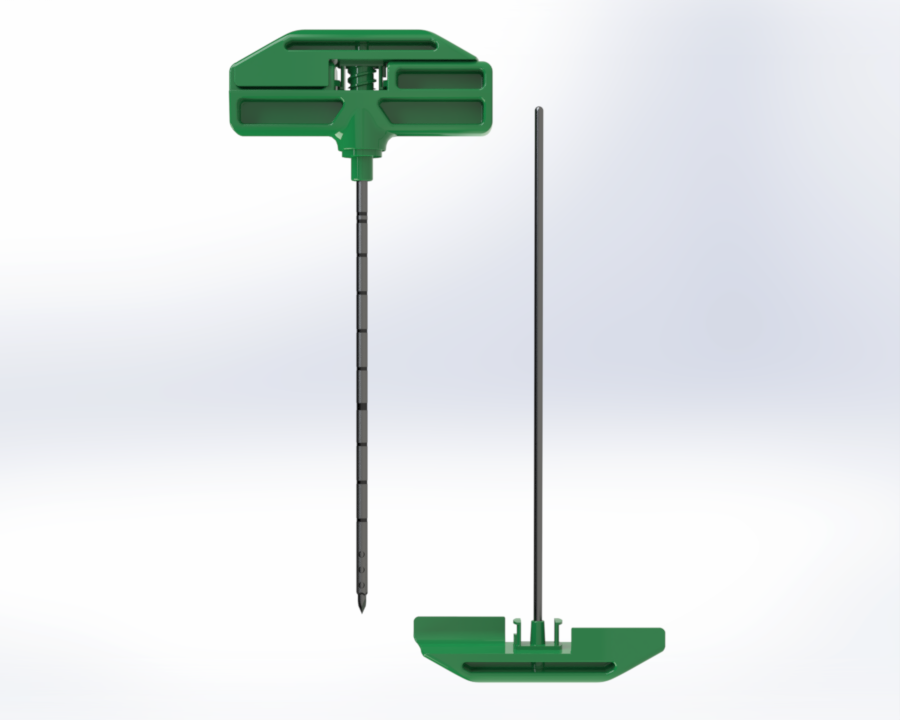

Single-use 11 gauge × 11 cm bone marrow aspiration needle with side-port fenestrated cannula and extra-blunt stylet. For exchange protocols requiring atraumatic re-entry.…
View product details →Higher flow per draw for orthobiologic concentrate preparation, bulk aspiration protocols, and deeper-anatomy access. The 25 cm RAN-823CM is the longest reach in the portfolio.

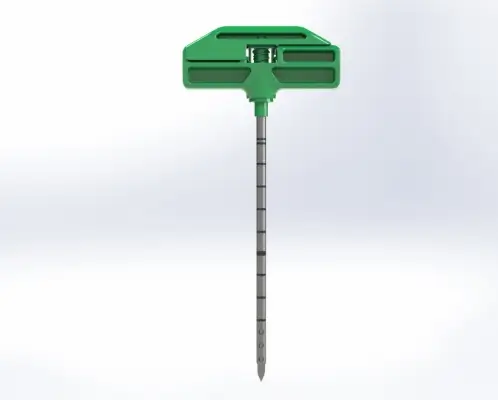

Single-use 8 gauge × 15 cm bone marrow aspiration needle with side-port (fenestrated) cannula and diamond-tip stylet. Large-bore configuration for higher-volume marrow draw.…
View product details →

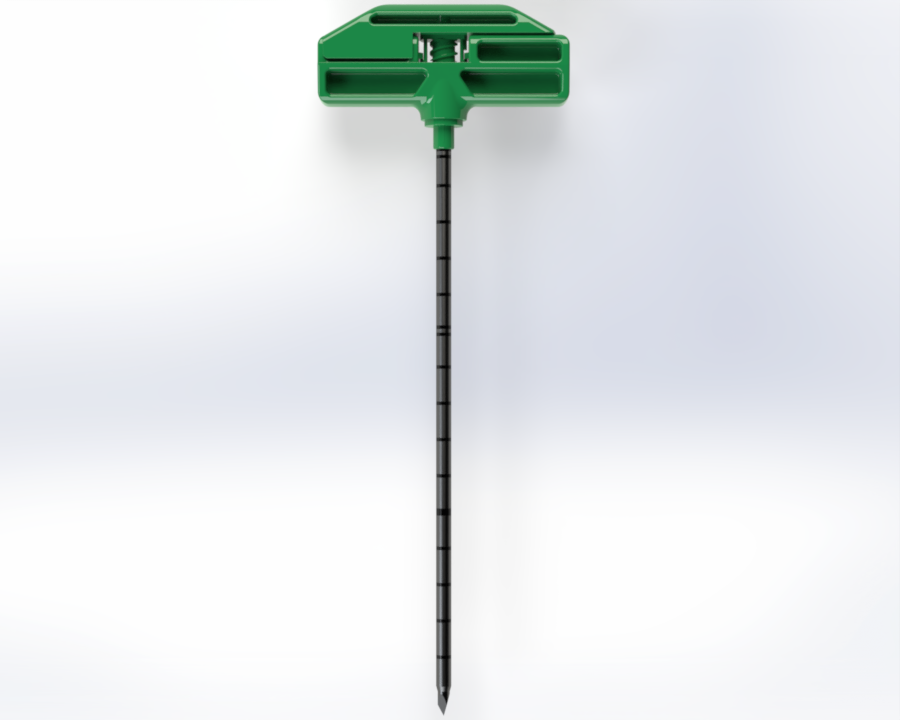

Single-use 8 gauge × 15 cm bone marrow aspiration needle with non-fenestrated cannula and diamond-tip stylet. Large-bore configuration for protocols requiring distal-tip-only…
View product details →

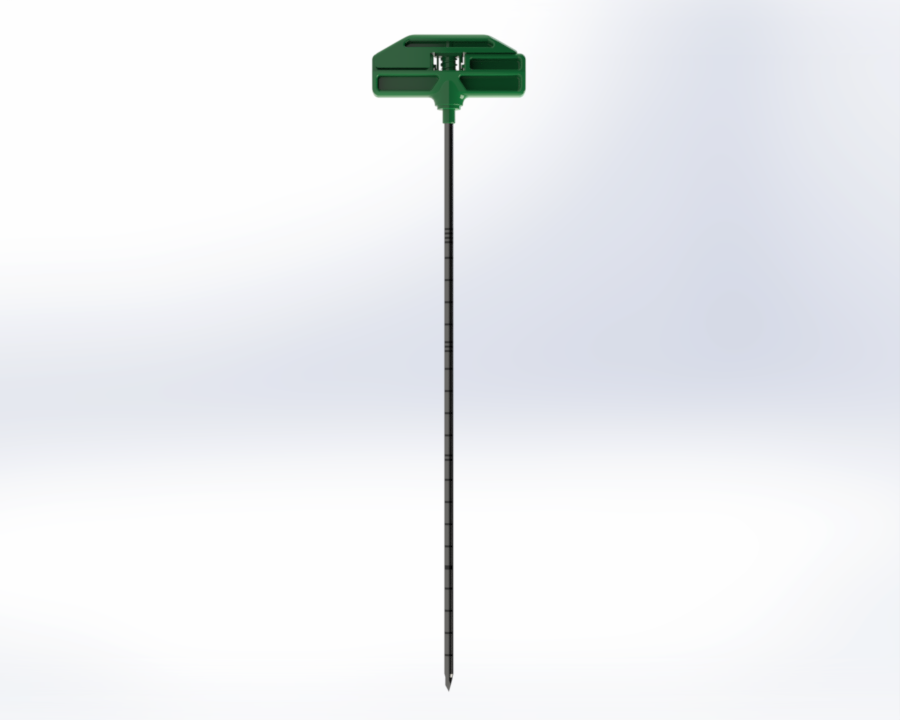

Single-use 8 gauge × 25 cm long-length bone marrow aspiration needle with non-fenestrated cannula and trocar-tip stylet. For deep-anatomy access. FDA-cleared (K131157), EO…
View product details →Lower-volume diagnostic aspiration and thin-cortex or smaller-anatomy protocols. Both 2.8″ and 4″ reaches available.

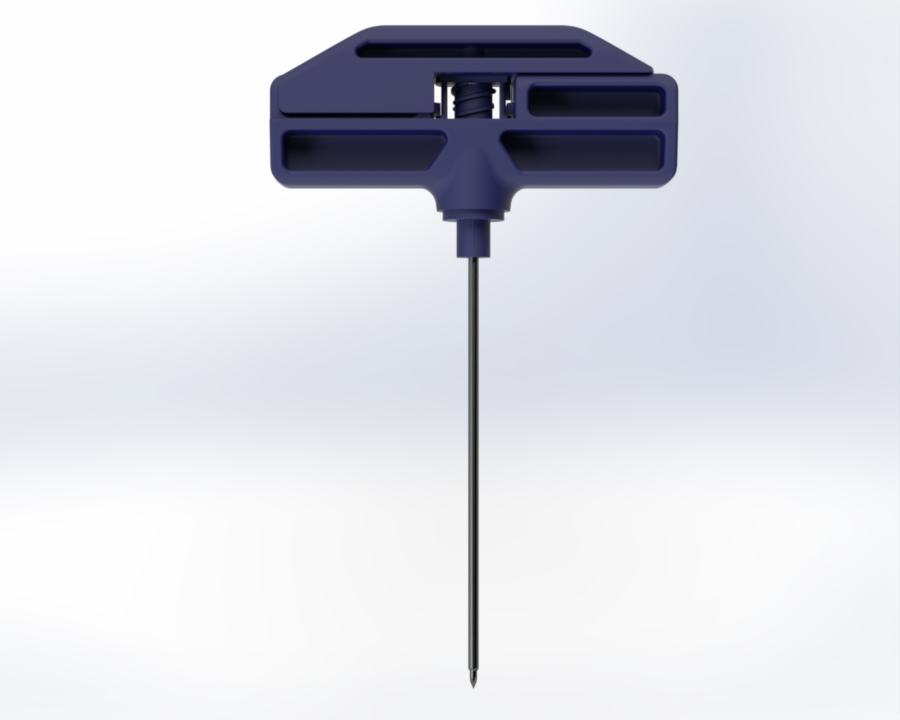

Single-use 15 gauge × 2.8 inch bone marrow aspiration needle. Smaller-bore configuration for lower-volume diagnostic or specialized aspiration applications. FDA-cleared…
View product details →

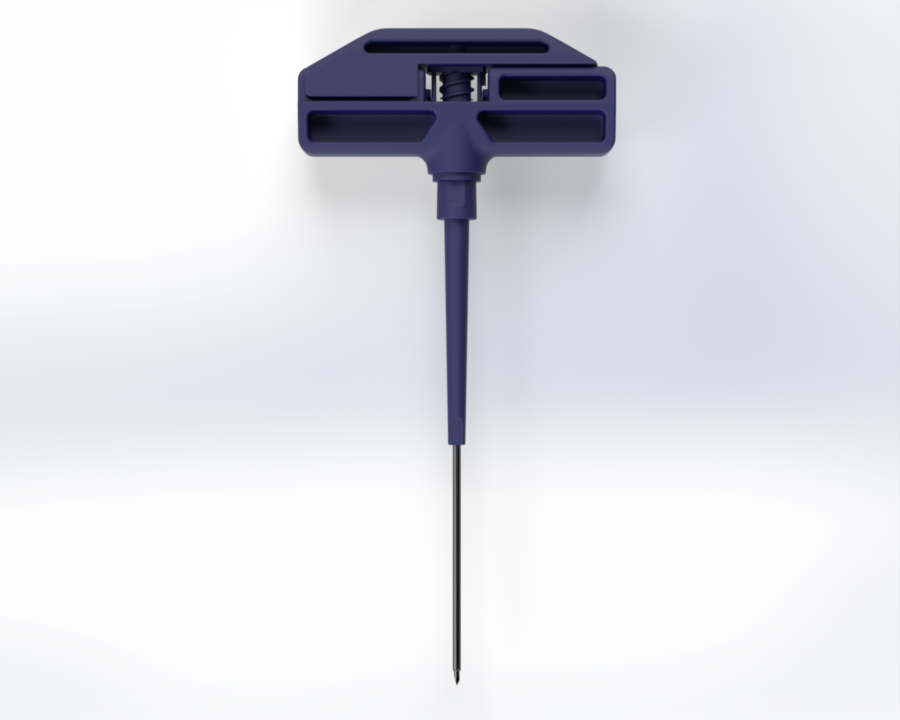

Single-use 15 gauge × 4 inch bone marrow aspiration needle. Smaller-bore configuration with standard 4 inch reach. FDA-cleared (K131157), EO sterilized, Rx only.
View product details →Specialty configurations supplied through Ranfac CDMO and private-label programs — modified cannula, stylet, or kit content on the same K131157 platform. Hero photography and engineering-confirmed specs pending for these variants.
Single-use 11 gauge × 15 cm bone marrow aspiration needle with non-fenestrated cannula. Cleared under 510(k) K131157, EO sterilized, Rx only.
View product details →Specialty 11 gauge × 15 cm bone marrow aspiration variant in the Ranfac K131157 family. EO sterilized, Rx only. Engineering to confirm exact configuration.
View product details →Specialty non-fenestrated 11 gauge × 15 cm bone marrow aspiration variant in the Ranfac K131157 family. EO sterilized, Rx only. Engineering to confirm exact configuration.
View product details →Specialty non-fenestrated 11 gauge × 15 cm bone marrow aspiration variant with bevel stylet in the Ranfac K131157 family. EO sterilized, Rx only.
View product details →Specialty 8 gauge non-fenestrated bone marrow aspiration variant with bevel stylet in the Ranfac K131157 family. EO sterilized, Rx only.
View product details →Patented captive-mechanism biopsy needles designed to recover long, non-fragmented marrow cores in a single advancement. The SNARECOIL™ handle architecture engages the specimen at the distal cannula tip, reducing the fragmentation that complicates pathological evaluation. Seven configurations spanning 8–13 gauge in 2–6 inch lengths.
The most common configurations for posterior iliac diagnostic biopsy. 4″ for standard reach, 6″ where deeper access is required. RBN-114S is a specialty 6″ variant supplied for OEM programs.

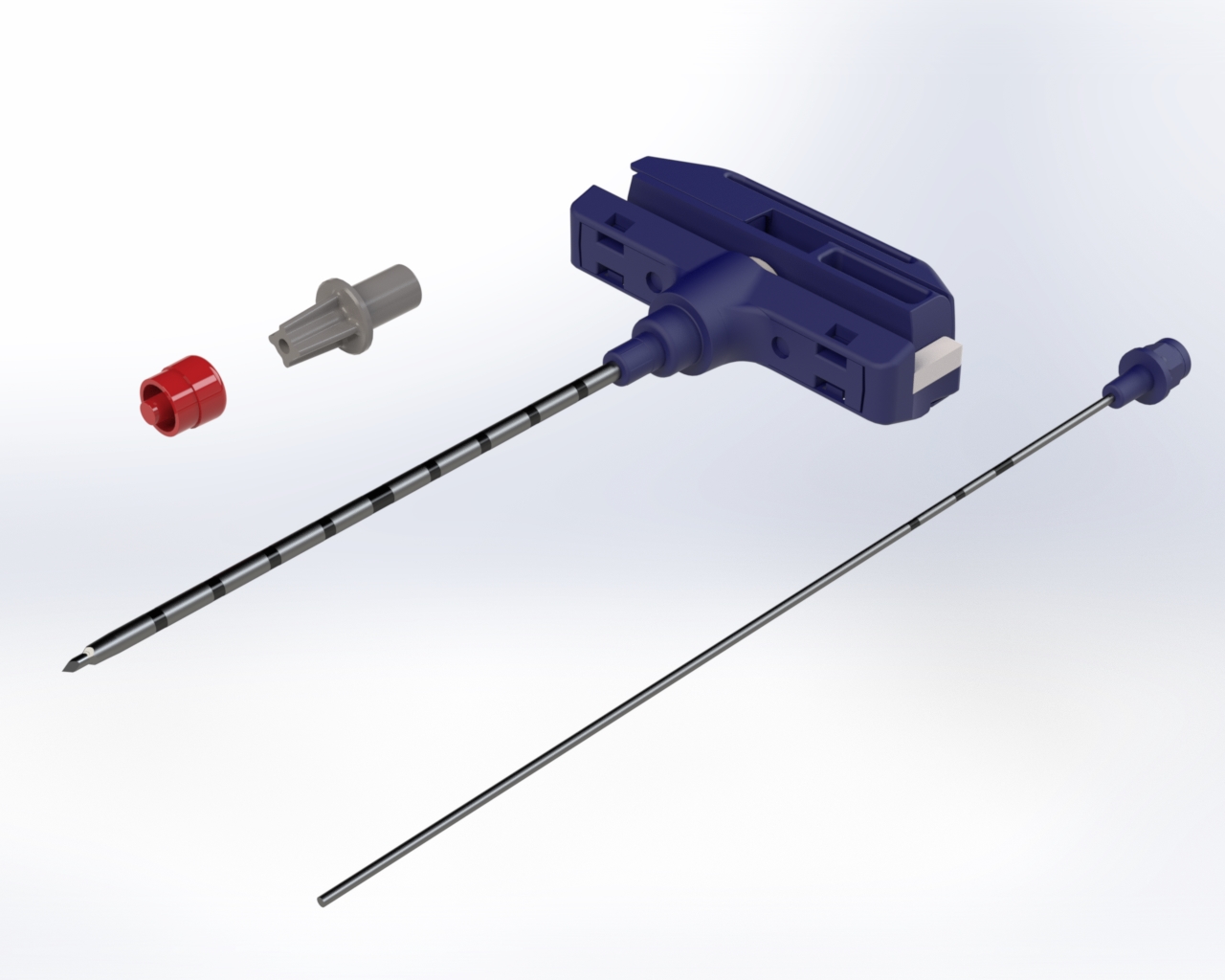

Single-use 11 gauge × 4 inch bone marrow biopsy needle with patented SNARECOIL™ specimen capture mechanism. EO sterilized, Rx only.
View product details →

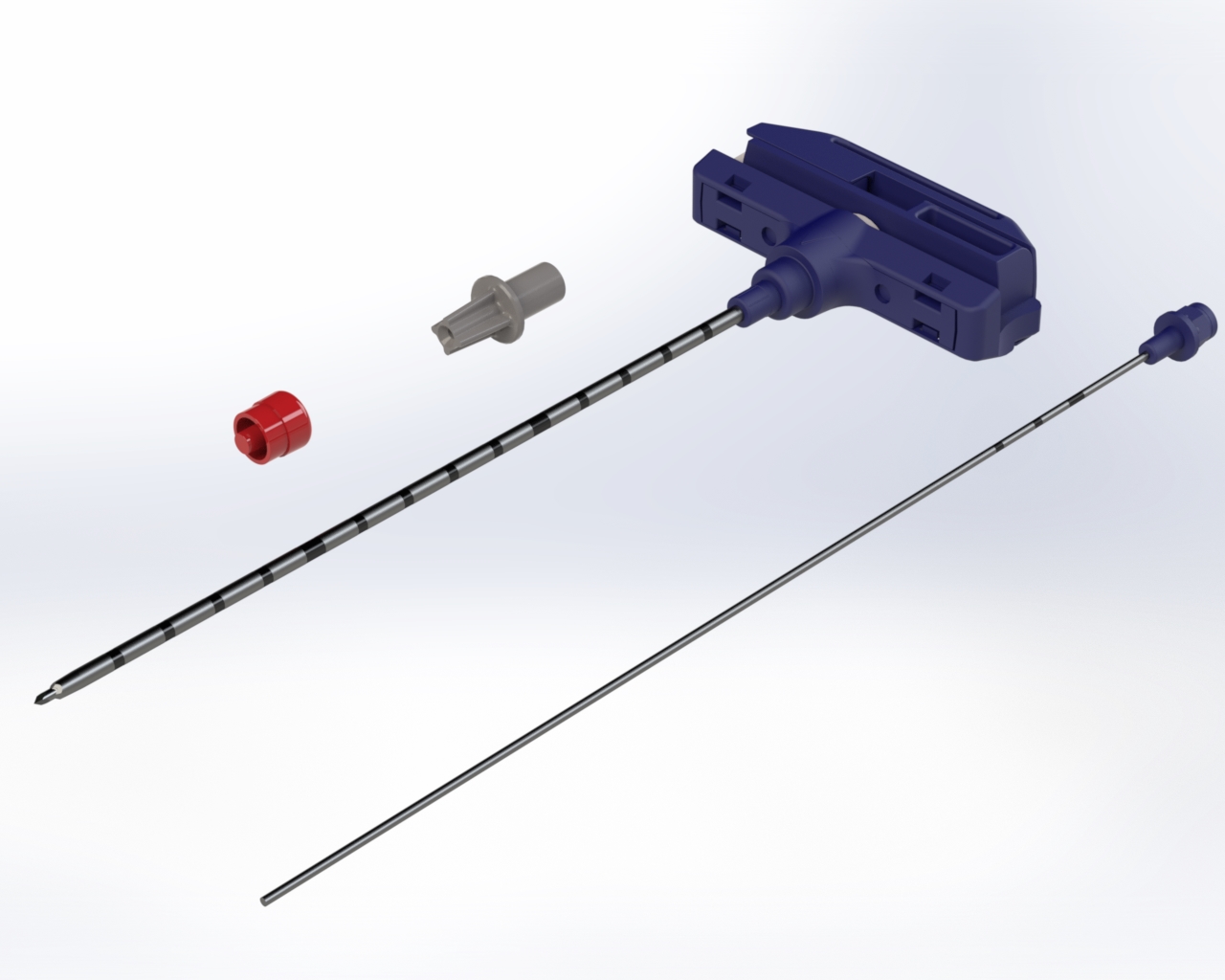

Single-use 11 gauge × 6 inch SNARECOIL™ bone marrow biopsy needle. EO sterilized, Rx only. Cleared under 510(k) K983187.
View product details →

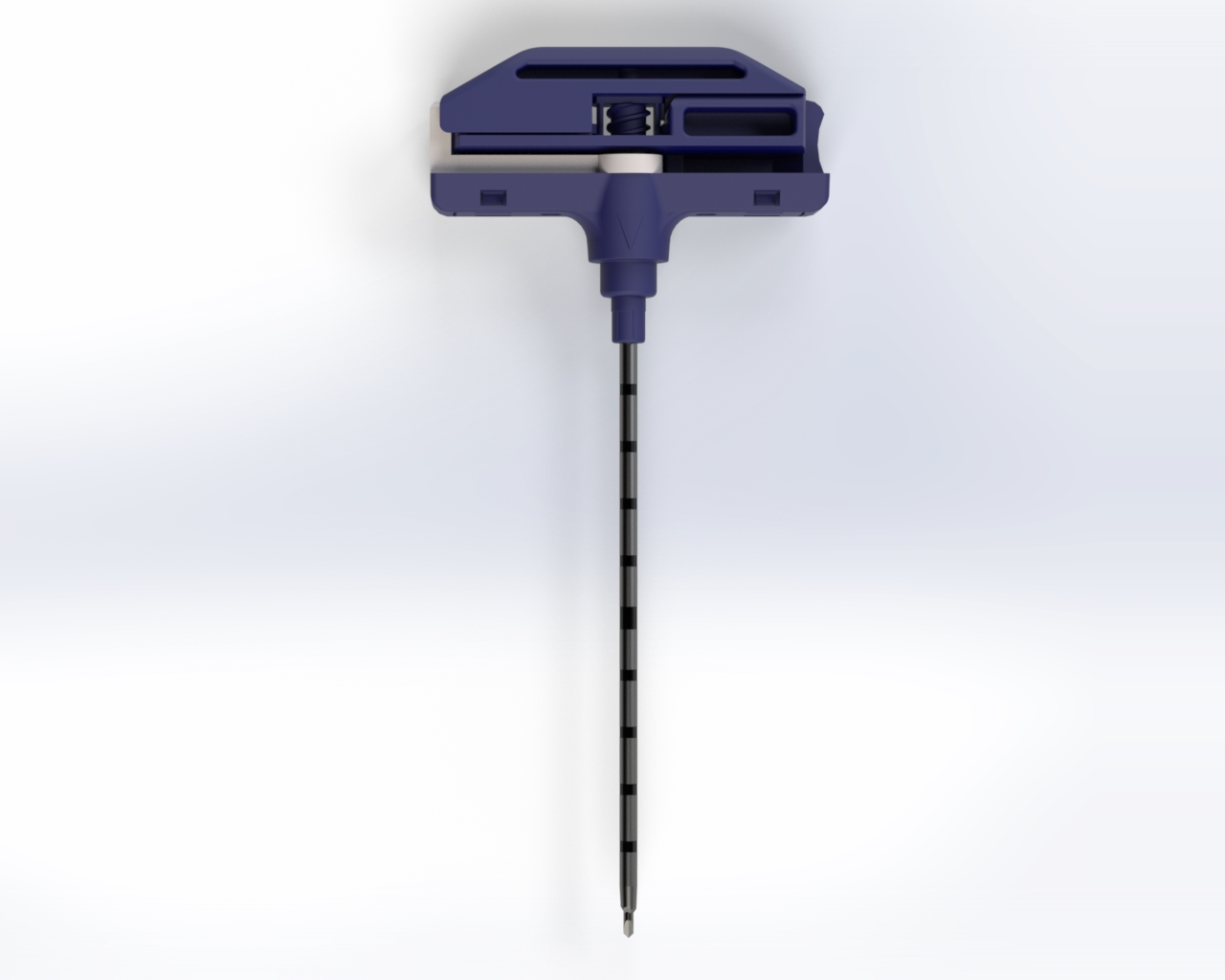

Single-use 11 gauge × 6 inch SNARECOIL™ bone marrow biopsy needle — specialty variant. EO sterilized, Rx only. Cleared under 510(k) K983187.
View product details →Larger-bore SNARECOIL™ configurations for procedures requiring higher specimen volume or wider cores.

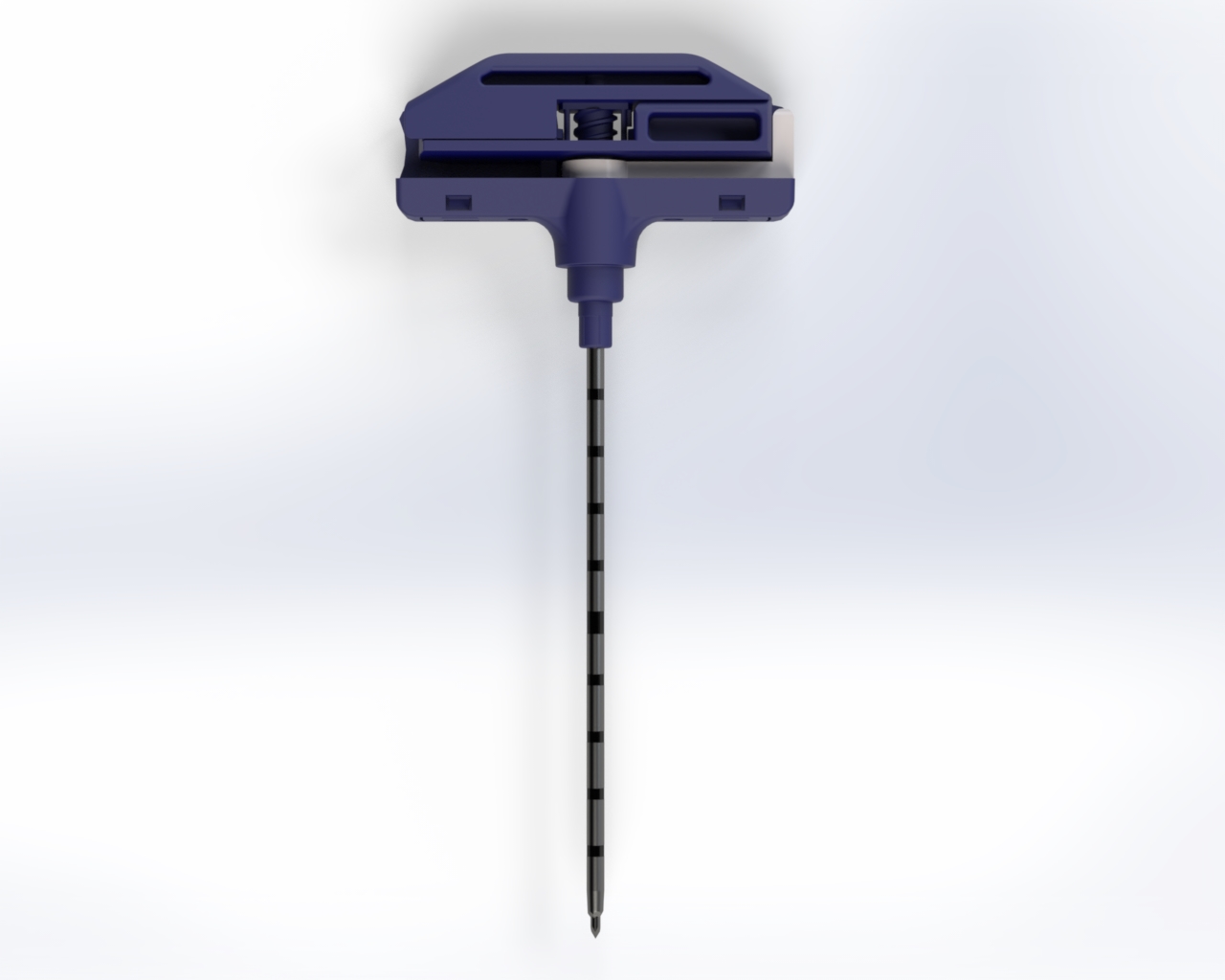

Single-use 8 gauge × 4 inch SNARECOIL™ bone marrow biopsy needle — large-bore configuration for high-volume core specimens. EO sterilized, Rx only.
View product details →

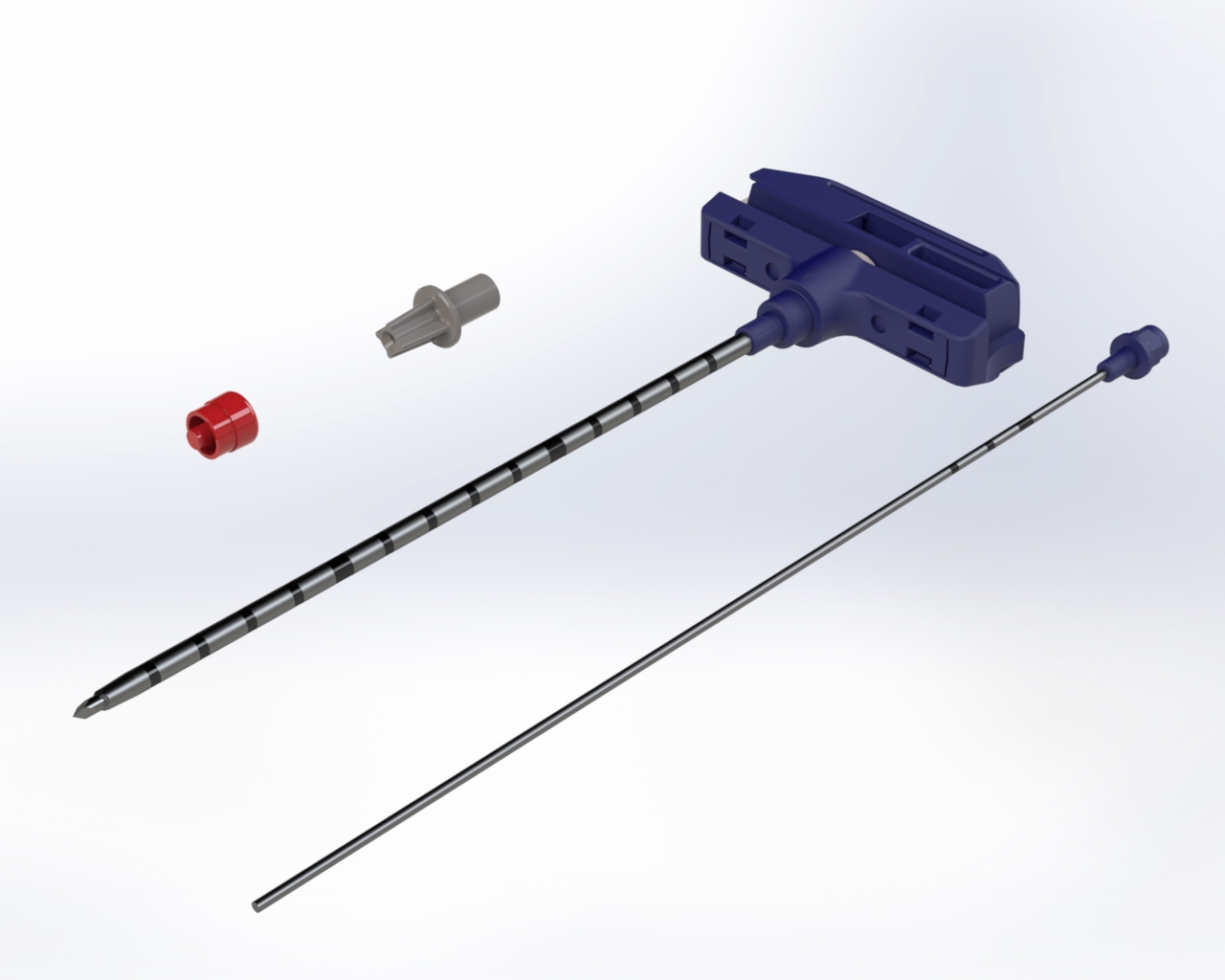

Single-use 8 gauge × 6 inch SNARECOIL™ bone marrow biopsy needle — large-bore configuration with extended reach. EO sterilized, Rx only.
View product details →Smaller-bore SNARECOIL™ configurations for thin-cortex anatomy, smaller-anatomy contexts, and lower-volume diagnostic applications.

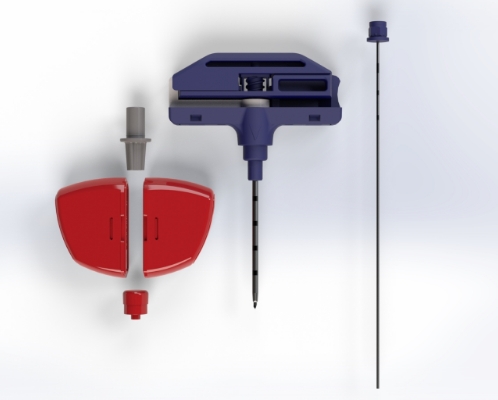

Single-use 13 gauge × 2 inch SNARECOIL™ bone marrow biopsy needle — smaller-bore configuration for thin-cortex anatomy. EO sterilized, Rx only. Cleared under 510(k) K983187.
View product details →

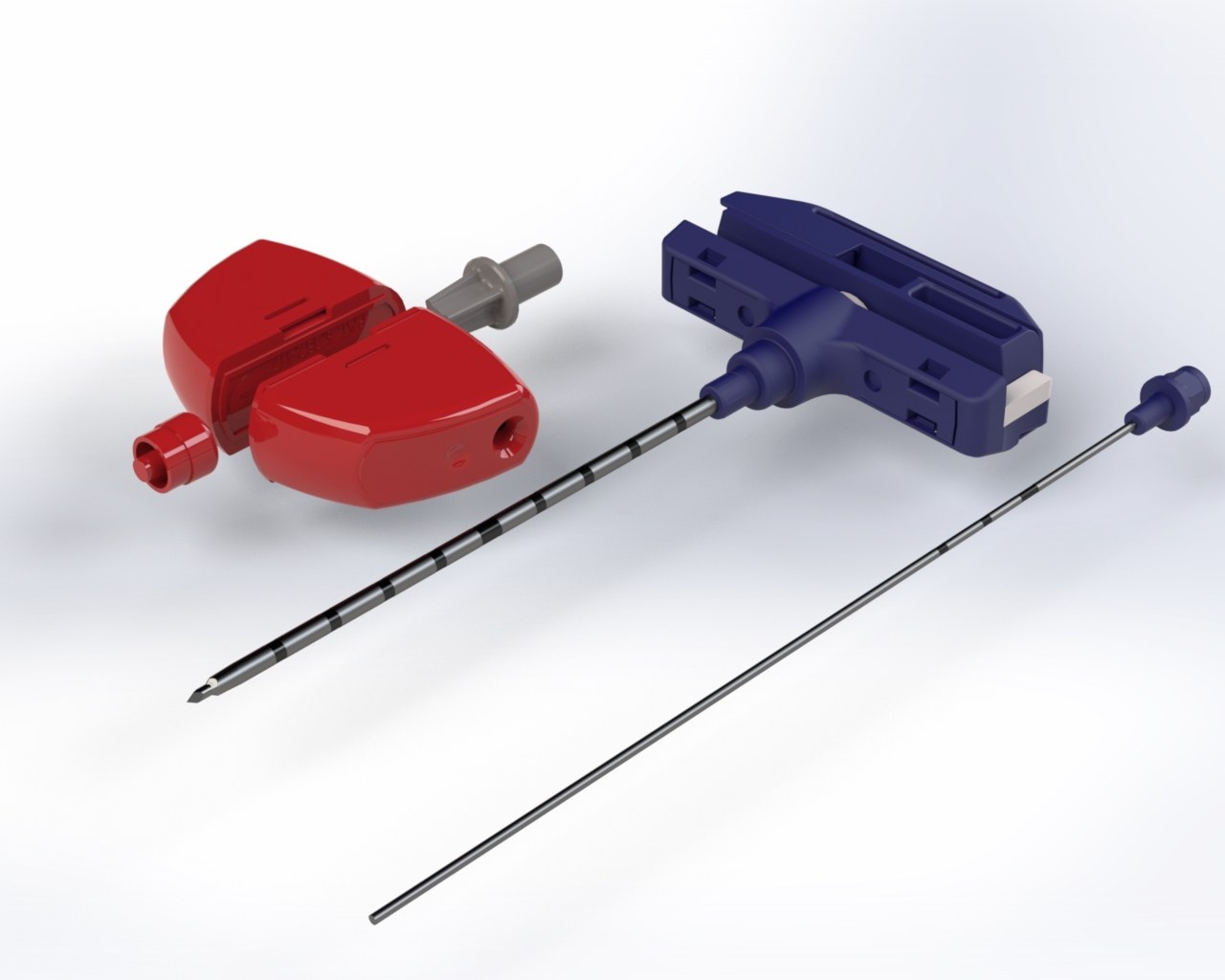

Single-use 13 gauge × 3 inch SNARECOIL™ bone marrow biopsy needle. EO sterilized, Rx only. Cleared under 510(k) K983187.
View product details →Five single-use instruments for laparoscopic and percutaneous procedures — pneumoperitoneum establishment, percutaneous access, trocar site closure, and intraoperative cholangiography. Designed as complementary tools across the standard MIS surgical workflow.
Fascia closure at laparoscopic port sites to reduce postoperative hernia risk.

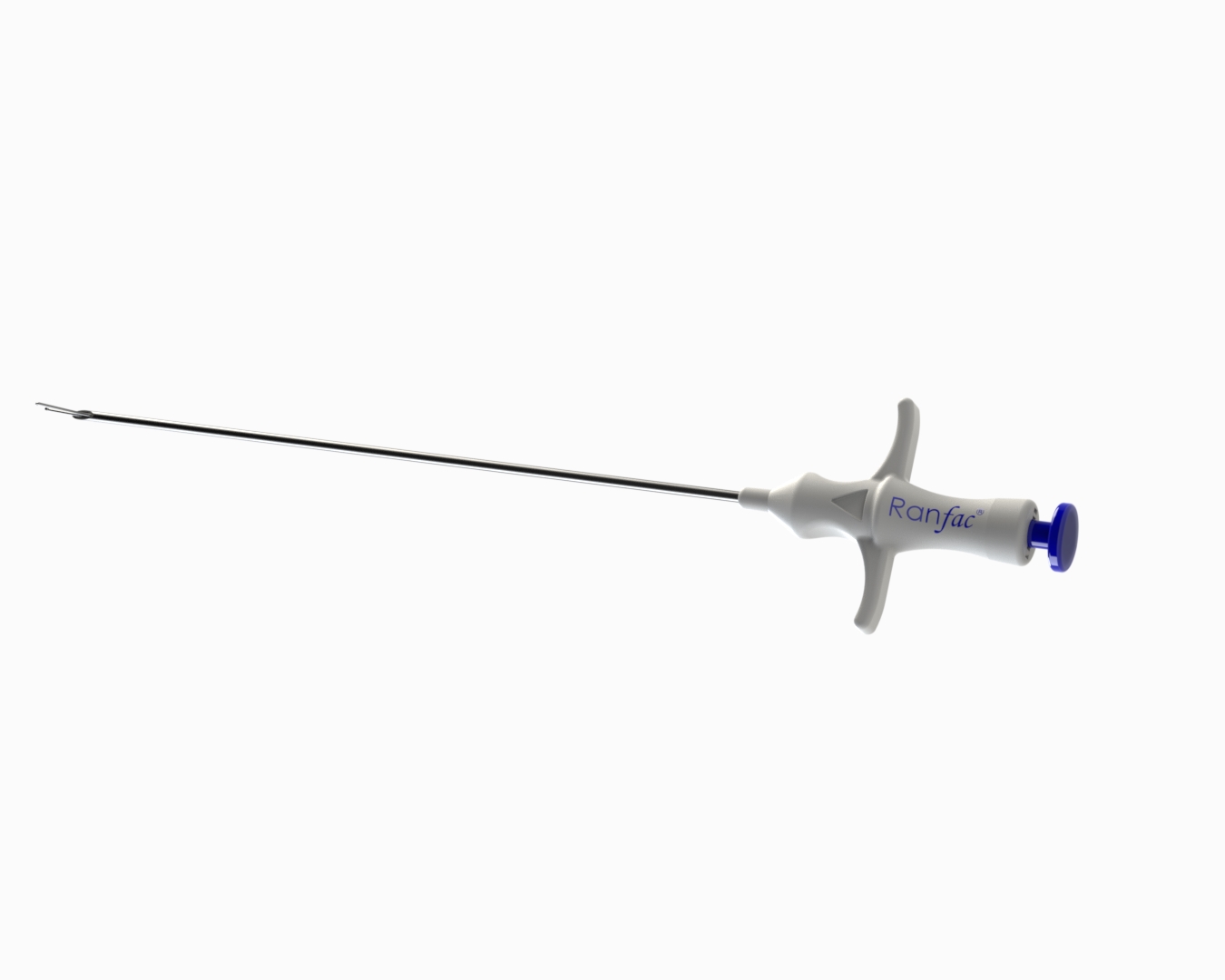

Single-use percutaneous puncture-closure device for laparoscopic trocar site management. FDA-cleared (K032478), EO sterilized, Rx only.
View product details →Controlled CO₂ delivery for establishing pneumoperitoneum prior to trocar placement.

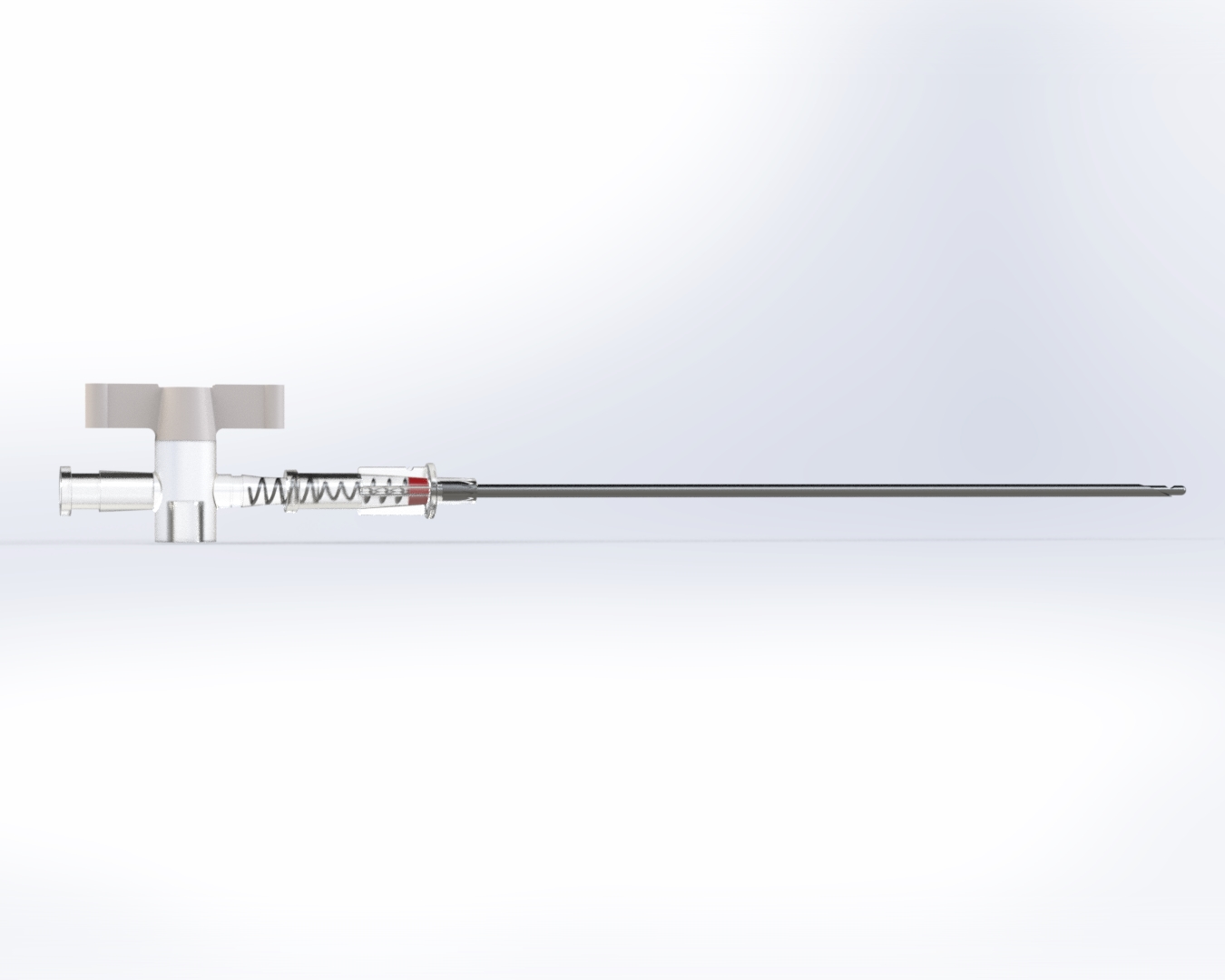

Single-use 12 cm insufflation needle for laparoscopic pneumoperitoneum establishment. FDA-cleared (K930474), EO sterilized, Rx only.

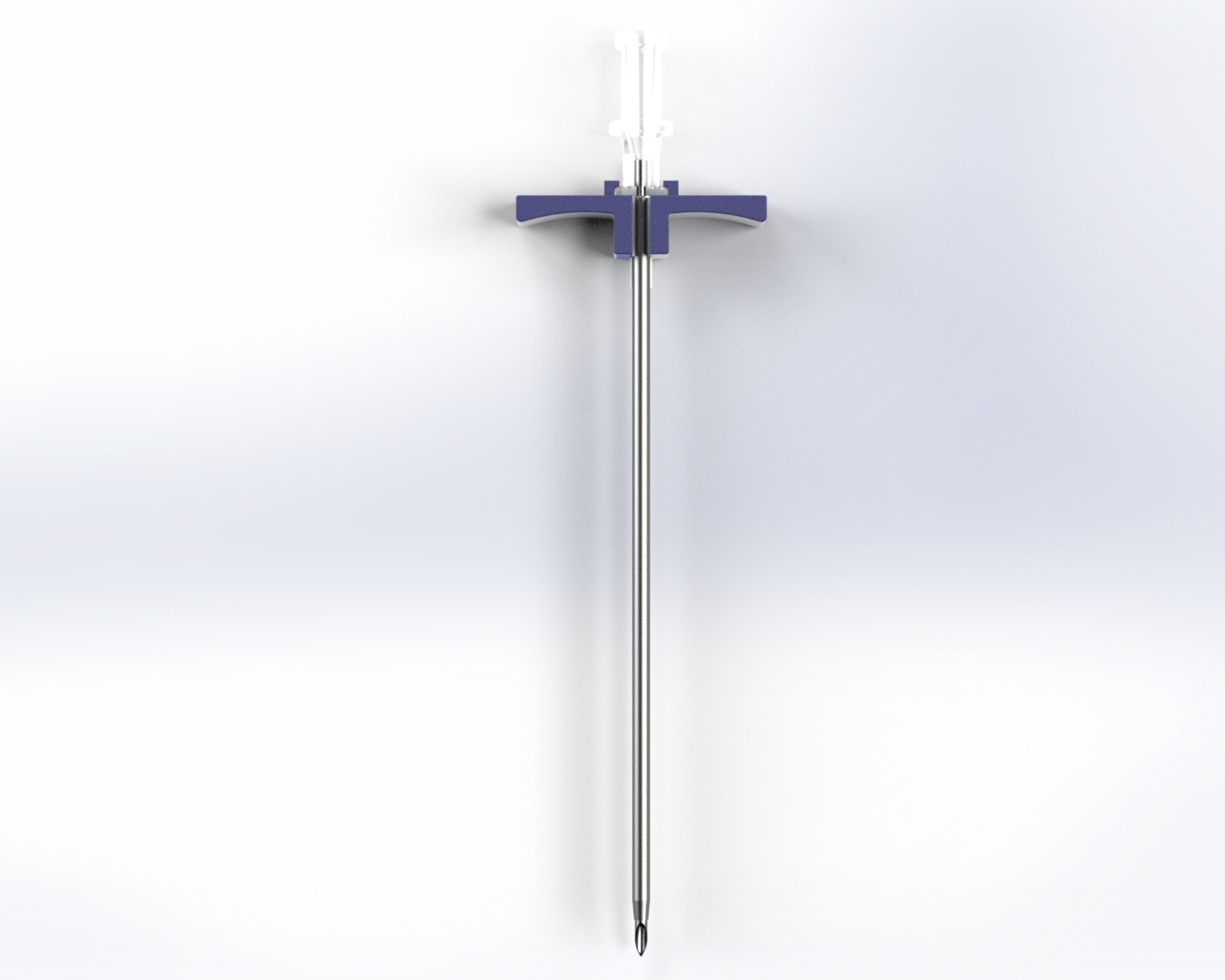

View product details →Seldinger-technique needle for guidewire placement during vascular, biliary, and urinary tract access procedures.
Single-use percutaneous introducer needle for guidewire placement and percutaneous access. FDA-cleared (K951090), EO sterilized, Rx only.
View product details →Catheters for bile duct visualization during laparoscopic biliary surgery. LAP-13 delivers through a trocar port; XL-11 is the percutaneous-access variant.

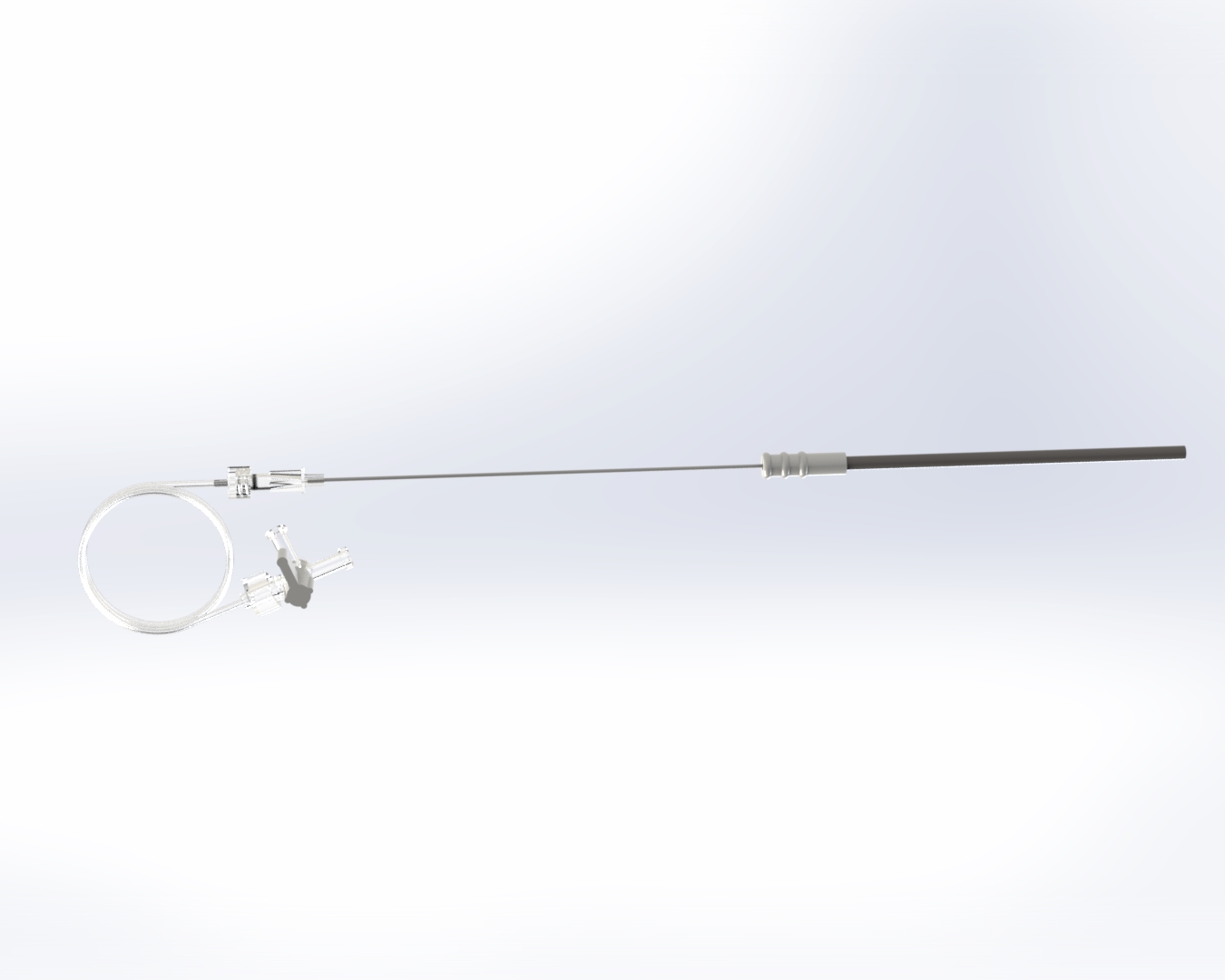

Single-use cholangiography catheter for laparoscopic intraoperative bile duct imaging via trocar port access. EO sterilized, Rx only.
View product details →

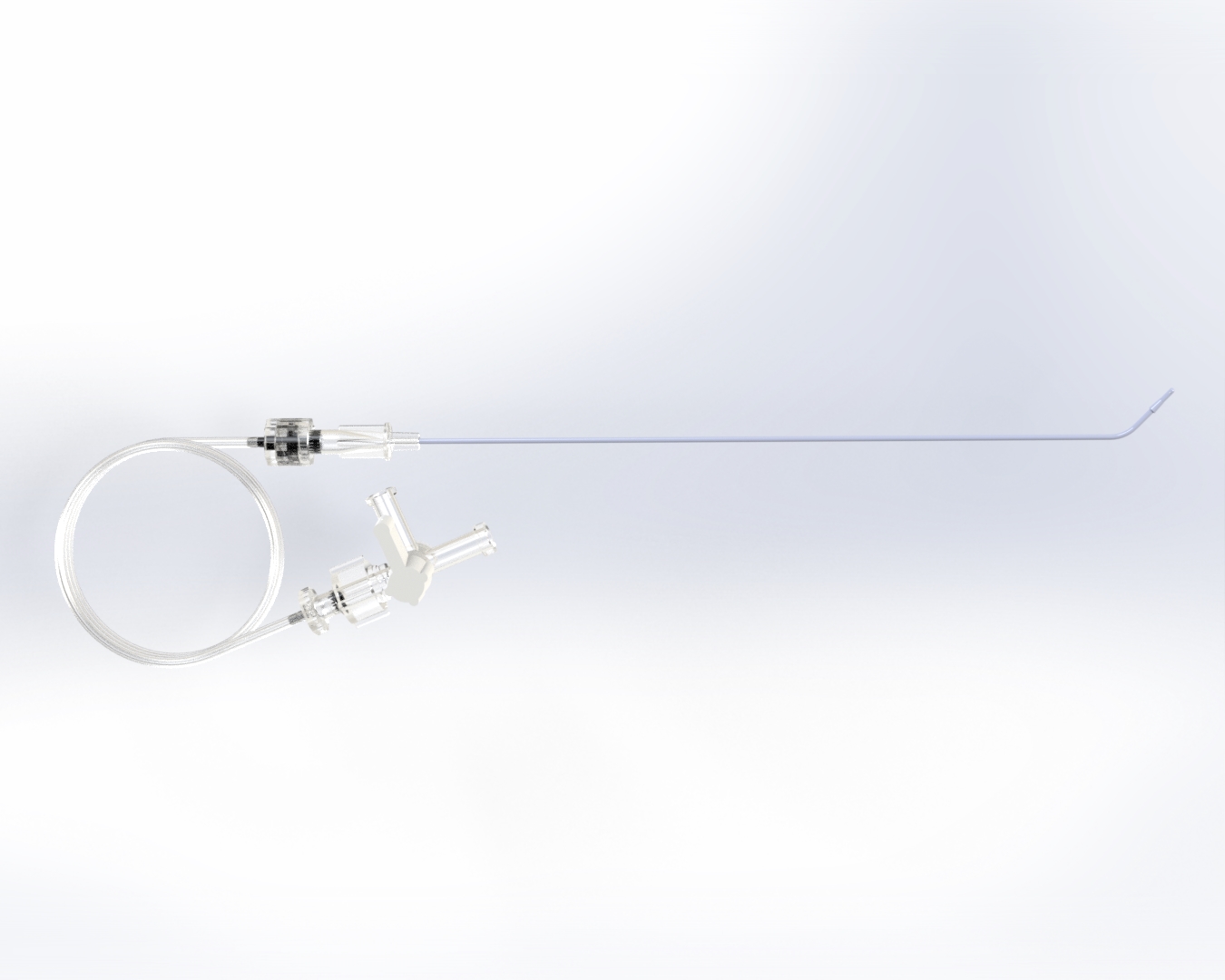

Single-use cholangiography catheter for percutaneous intraoperative bile duct imaging. EO sterilized, Rx only.
View product details →Our product team handles quotes, sample requests, IFU and 510(k) questions, and pre-purchase technical evaluation. Typical response: one business day.
Every product above is built on the same Ranfac single-source platform — machining, molding, assembly, and the pre-validated STERIS sterilization partnership — that we use for OEM, CDMO, and CMO programs. If you're developing a device that fits this profile, we can talk through the technical and regulatory path.
